Application
Where the EPS 38 Is Deployed
Most compact helical-worm unit. Small packaging machines, precision dosing systems, laboratory equipment, and automated assembly lines. The helical pre-stage boosts efficiency to 80-92%, eliminating the thermal limitations that restrict pure worm gearboxes in continuous-duty small automation.
For materials, construction details, and the engineering rationale behind the helical-worm combination, refer to the EPS Series overview.
Dimensions

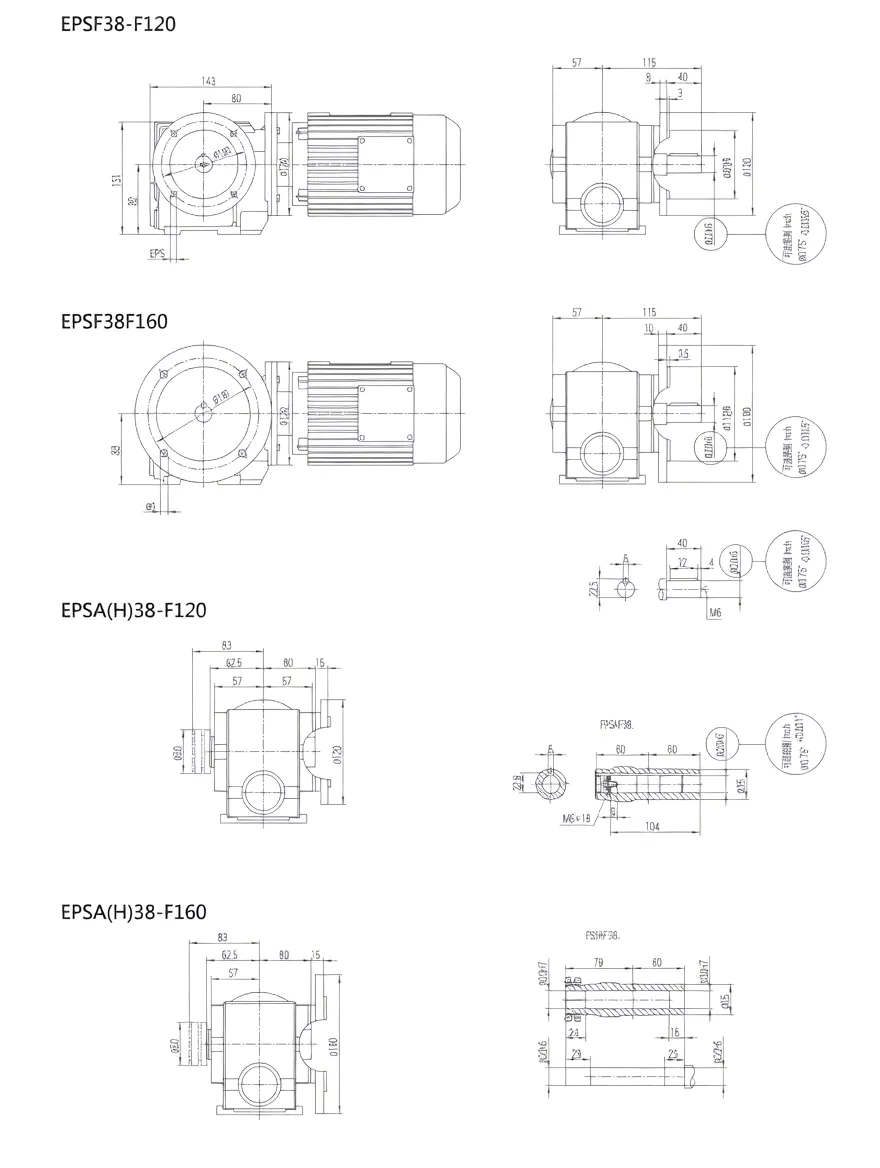

EPS 38 Dimensional Drawing
Configuration Options
EPS 38 Available Variants
| Variant | Configuration |
|---|---|
| EPS38 | Solid shaft A-Side, foot mount |
| EPS38-B | Solid shaft B-Side, foot mount |
| EPS38AB | Double output shaft, foot mount |
| EPSF38 | B5 Flange A-Side, solid shaft |
| EPSF38-B | B5 Flange B-Side, solid shaft |
| EPSA38 | Hollow shaft output |
| EPSA38/T | Hollow shaft with torque arm |
| EPSAF38 | B5 Flange A-Side, hollow shaft |
| EPSAF38-B | B5 Flange B-Side, hollow shaft |
| EPSH38 | Hollow shaft with shrink disc B-Side |
| EPSH38/T | Hollow shaft, torque arm, shrink disc B-Side |
| EPSH38-B | Hollow shaft with shrink disc A-Side |
| EPSHF38 | B5 Flange A-Side, hollow shaft, shrink disc B-Side |
| EPSHF38-B | B5 Flange B-Side, hollow shaft, shrink disc A-Side |
| EPSHZ38 | Z-Flange A-Side, hollow shaft, shrink disc B-Side |
| EPSHZ38-B | Z-Flange B-Side, hollow shaft, shrink disc A-Side |
IEC B5, NEMA, and AD shaft adapters available. Specify variant code when requesting a quote.
